System technology

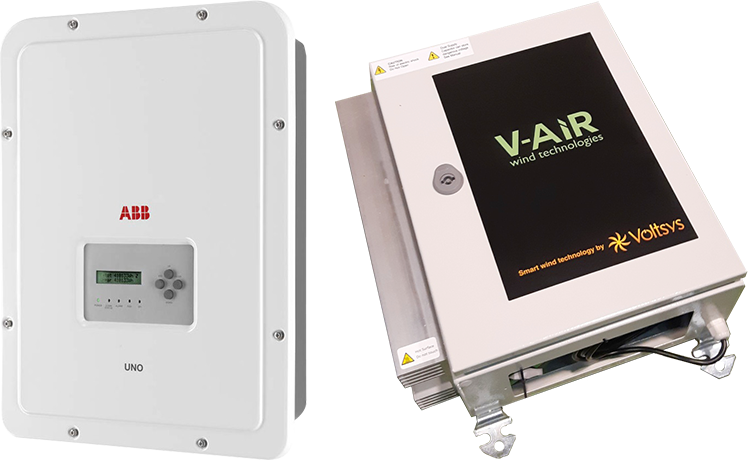

ABB grid tie inverter
V-AIR use ABB grid tie solar inverters associated to Voltsys wind controllers. Voltsys controllers override the MPPT tracking in the ABB solar inverters. The controller stores the wind turbine power curve and manages the inverter.
Specifications
- Models : Designed to work with VisionAIR 3 and VisionAIR 5
- Max. DC Input Voltage : 600V
- Rated Grid Frequency : 50 or 60 Hz
- Inverter in accordance with European and USA network standards
- Electrical Configuration : Grid-tie
- Monitoring Capabilities
- Operating Temperature : -25 to 60 degrees Celsius

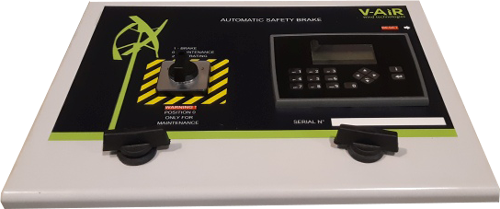

V-AIR AUTOMATIC SAFETY BRAKE
V-AIR use ABB grid tie solar inverters associated to Voltsys wind controllers. Voltsys controllers override the MPPT tracking in the ABB solar inverters. The controller stores the wind turbine power curve and manages the inverter.
Specifications
- V-AIR has designed its ASB with an industrial PLC to meet the braking conditions of the wind turbine with double detection system :
– detection of the rotation frequency
– wind speed detection - and a double braking :
– induced current brake
– electromagnetic brake
